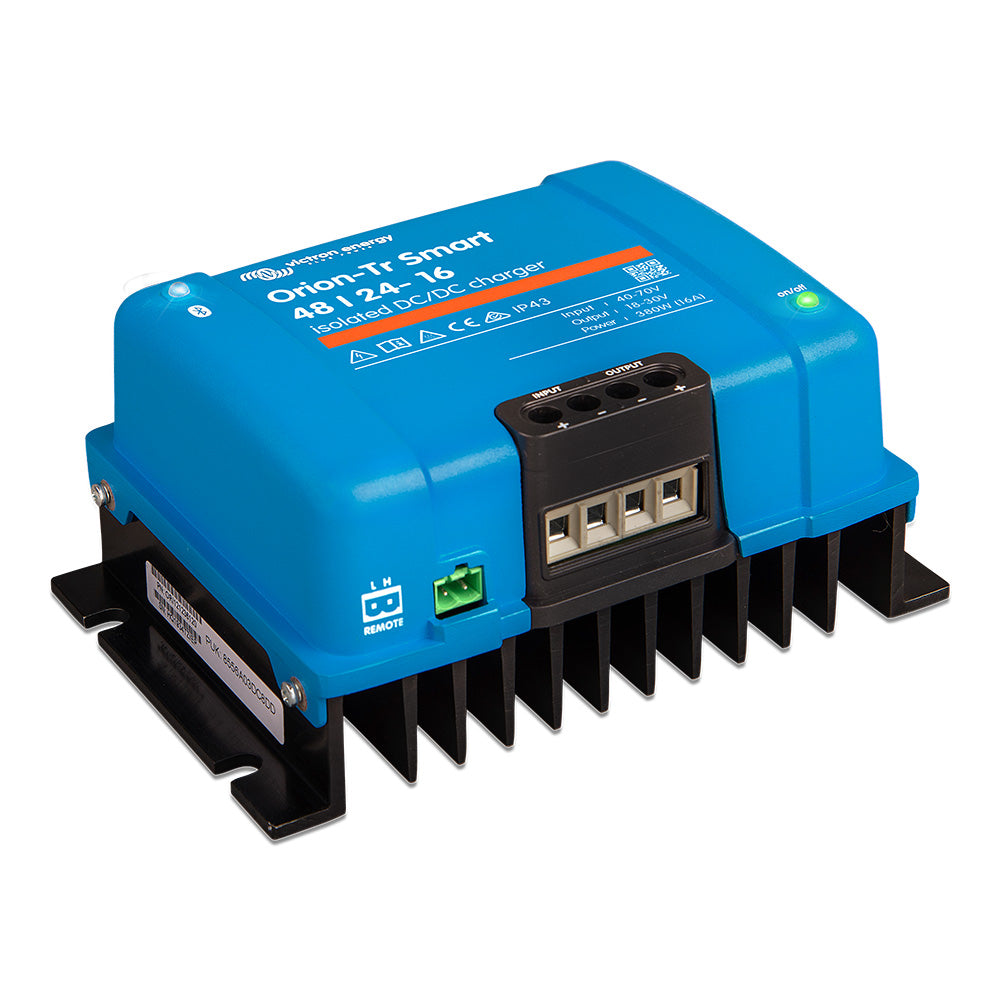

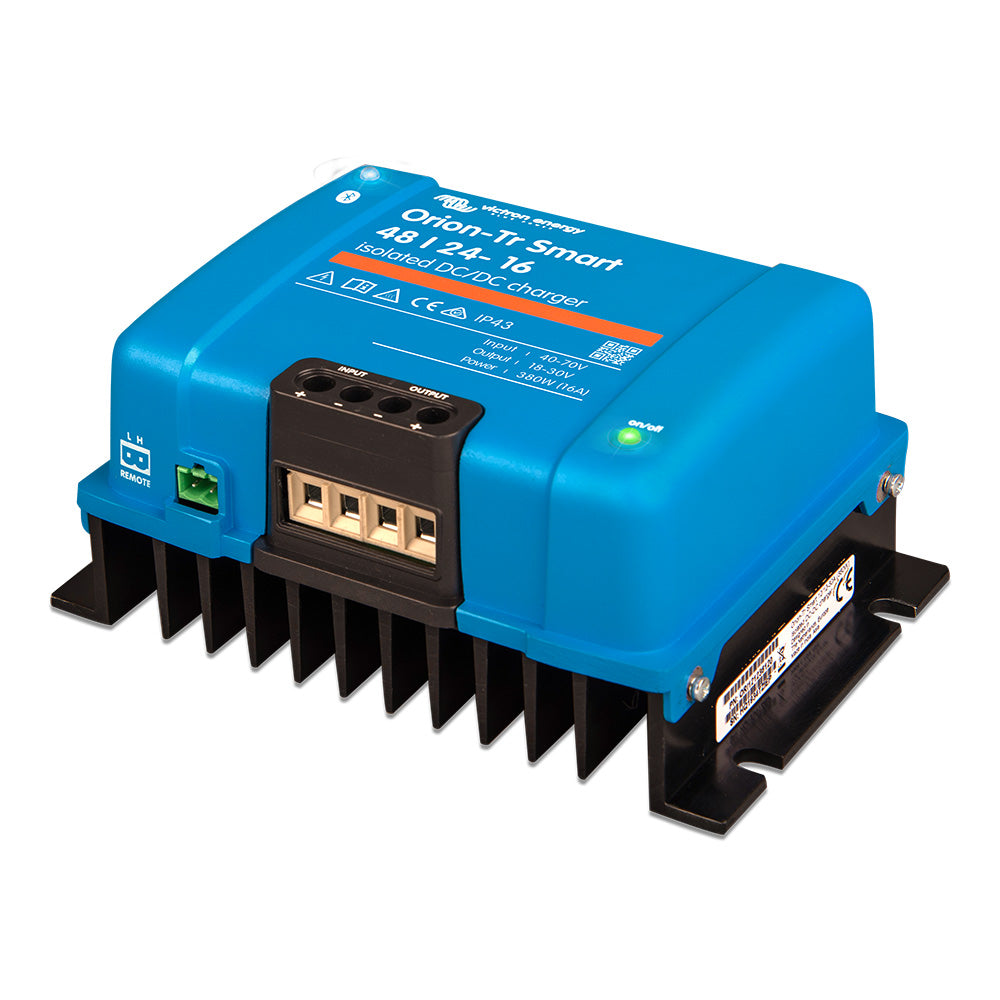

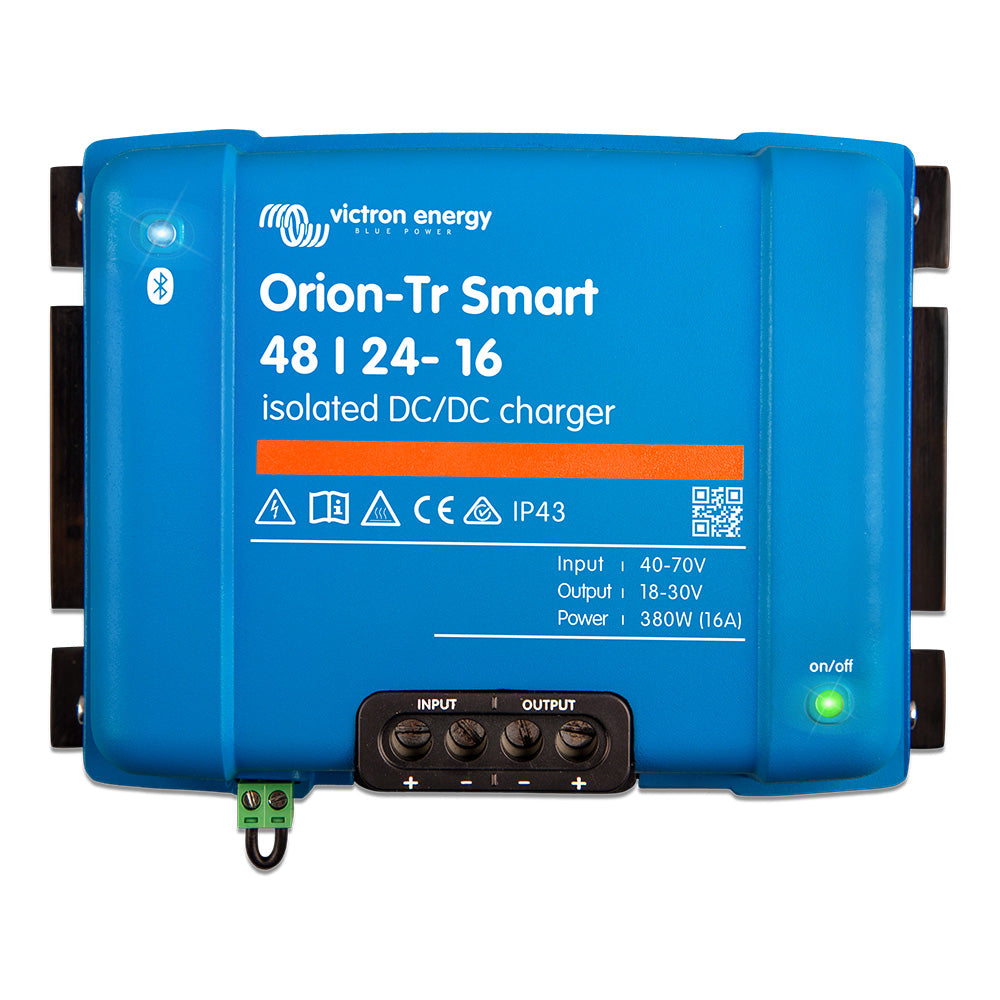

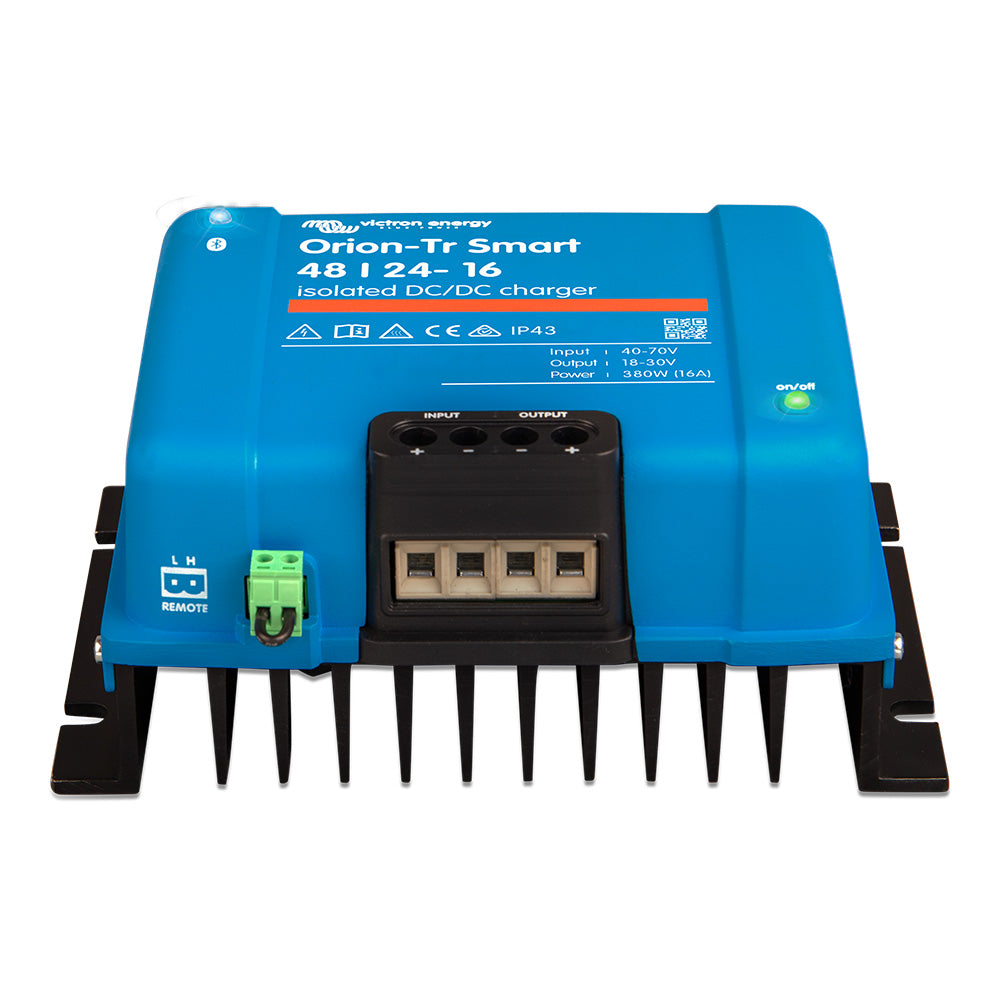

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55C with a full rated output up to 40C.
Bluetooth Smart enabled
- Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk absorption float
- For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries absorption time is fixed, default 2 hours.
- Alternatively, a fixed output voltage can be chosen.
Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)
- The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
Remote on/off
- A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
- An unlimited number of units can be connected in parallel.
High temperature protected
- The output current will reduce at high ambient temperatures.
IP43 protection
- When installed with the screw terminals oriented downward.
Screw terminals
- No special tools are needed for installation.
Input fuse (not replaceable)
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Orion-Tr Smart 48/24-16A Isolated DC-DC Charger is a highly efficient solution designed for dual battery systems in vehicles and boats. With a robust 380W output and Bluetooth connectivity, this adaptive 3-stage charger allows users to monitor and program the device effortlessly through their smartphones or tablets. Perfect for both lead acid and lithium batteries, it ensures your service battery receives optimal charging from the smart alternator and start battery.
This charger is engineered to handle high temperatures, maintaining full rated output up to 104?F, making it reliable even in challenging environments. Its engine running detection mechanism prevents unwanted discharge of the starter battery, and the ability to connect multiple units in parallel means you can easily scale up your power output. With features like a programmable battery charge algorithm and remote on/off capabilities, the Victron Orion-Tr is a versatile choice for modern battery management.
Features:
* Bluetooth Smart enabled for easy monitoring and setting adjustments via the VictronConnect App.: Bluetooth Smart enabled for easy monitoring and setting adjustments via the VictronConnect App.
* Fully programmable with configurable battery charge algorithms and a smart alternator compatibility feature.: Fully programmable with configurable battery charge algorithms and a smart alternator compatibility feature.
* Adaptive 3-stage charge algorithm ensures optimal battery health by adjusting absorption time based on discharge depth.: Adaptive 3-stage charge algorithm ensures optimal battery health by adjusting absorption time based on discharge depth.
* Engine running detection mechanism prevents unwanted battery discharge when the vehicle engine is off.: Engine running detection mechanism prevents unwanted battery discharge when the vehicle engine is off.
* Remote on/off functionality allows for convenient control via an external switch.: Remote on/off functionality allows for convenient control via an external switch.
* Short circuit proof design allows unlimited units to be connected in parallel to increase output current.: Short circuit proof design allows unlimited units to be connected in parallel to increase output current.
* High temperature protection reduces output current at elevated ambient temperatures.: High temperature protection reduces output current at elevated ambient temperatures.
* IP43 rated for effective dust and water protection when installed properly.: IP43 rated for effective dust and water protection when installed properly.
* Convenient screw terminal installation requires no special tools.: Convenient screw terminal installation requires no special tools.
