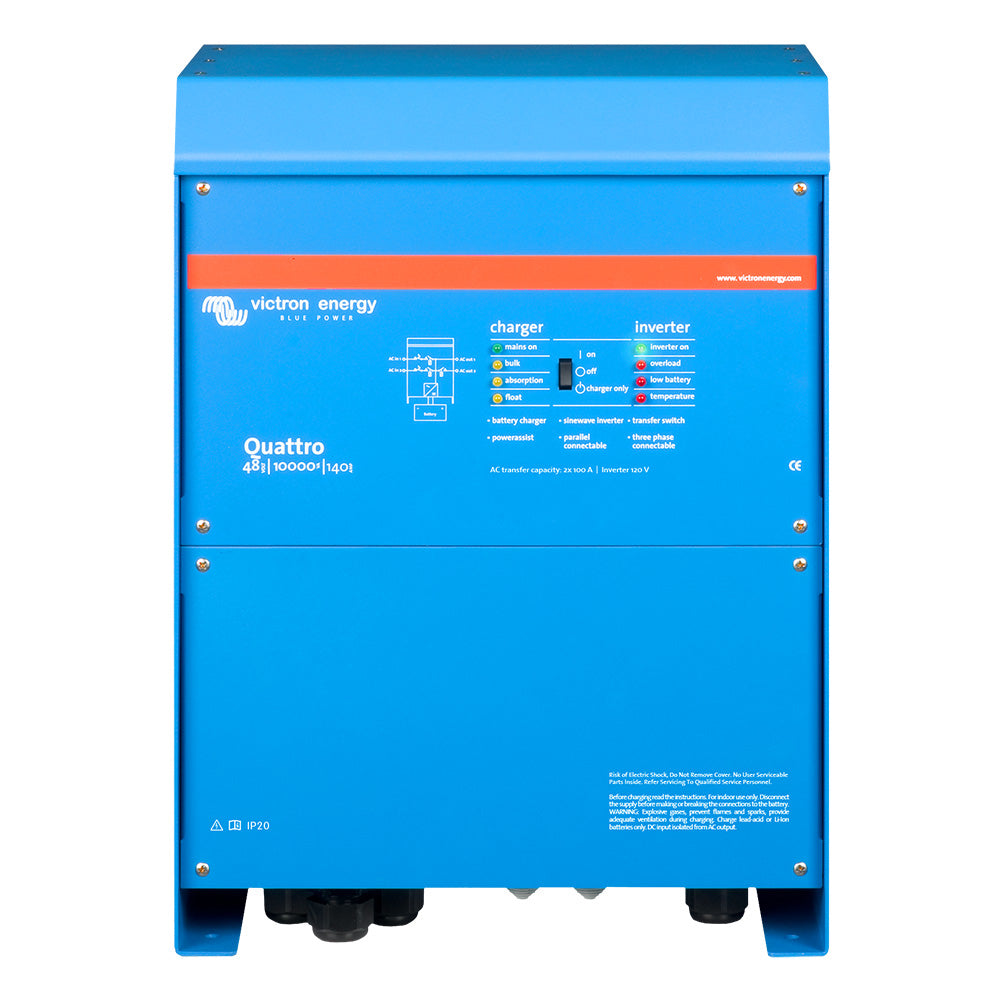

Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed
Multifunctional
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.
Two AC Inputs Two AC Outputs
The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist Feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virutually Unlimited Power Thanks to Parallel Operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Quattro 48/10000 140-100/100 120V VE.Bus UL-Listed is a versatile inverter and charger designed for maximum efficiency and reliability in various applications. With its dual AC inputs and outputs, this multifunctional device seamlessly switches between two sources, such as shore power and a generator, ensuring uninterrupted power supply even during outages. The Quattro features a true sine wave inverter and adaptive charging, making it ideal for sensitive electronics and extended battery life.
One of the standout features of the Quattro is its unique PowerAssist technology, which prevents overload of limited AC sources. This means that you can confidently connect high-demand appliances without worrying about overloading your generator or shore connection. Additionally, the Quattro's capacity for parallel operation allows you to connect up to six units, increasing your power output for larger systems. When paired with a GX device, remote monitoring and control become effortless, providing users with comprehensive oversight and management capabilities from anywhere in the world.
Features:
* Multifunctional inverter and charger with dual AC inputs and outputs: Multifunctional inverter and charger with dual AC inputs and outputs
* True sine wave inverter ensures compatibility with sensitive electronics: True sine wave inverter ensures compatibility with sensitive electronics
* Adaptive charging technology for optimal battery maintenance: Adaptive charging technology for optimal battery maintenance
* PowerAssist feature prevents overload of limited AC sources: PowerAssist feature prevents overload of limited AC sources
* Parallel operation capability allows up to six units for increased power output: Parallel operation capability allows up to six units for increased power output
* Remote monitoring and control via GX device and VRM app: Remote monitoring and control via GX device and VRM app
