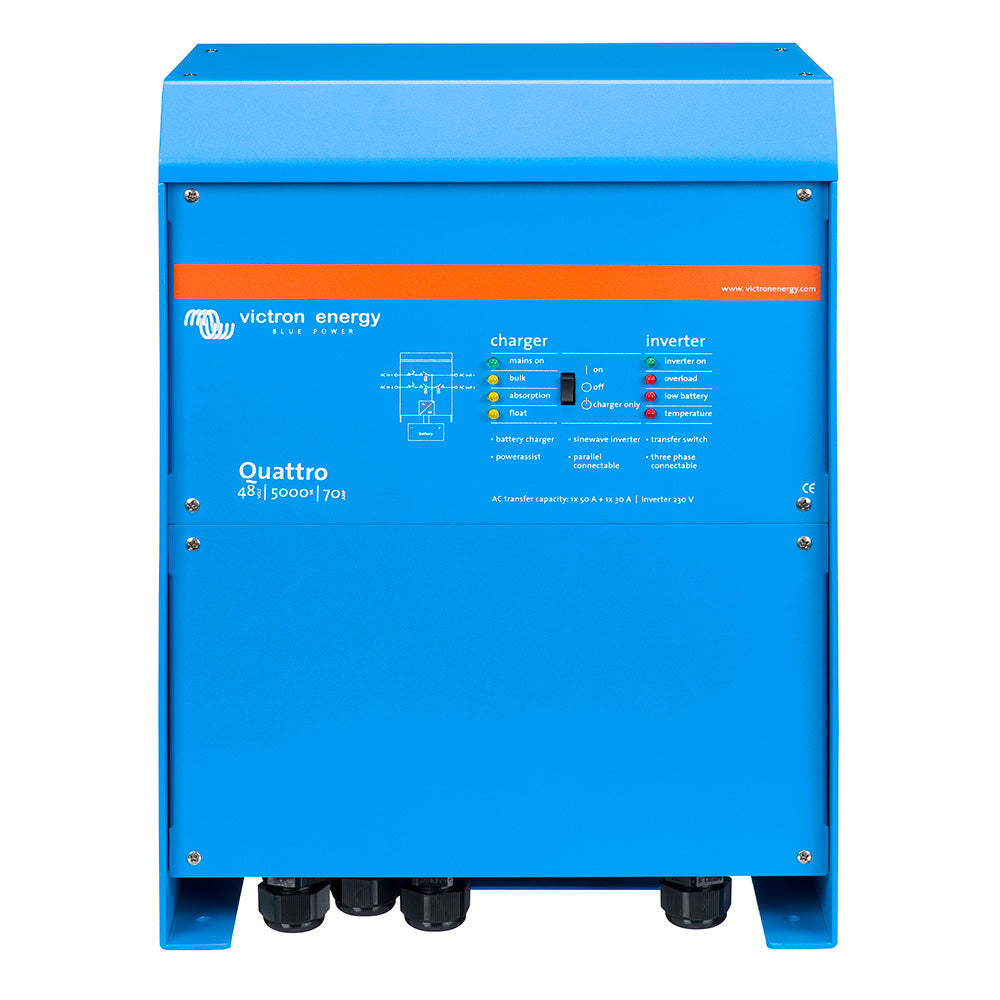

Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed
Multifunctional
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.
Two AC Inputs Two AC Outputs
The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist Feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virutually Unlimited Power Thanks to Parallel Operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.
Please contact your dealer for any returns, repairs or support issues related to this product.
Experience the power and versatility of the Victron Energy Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed Inverter/Charger. This multifunctional device combines a high-performance inverter and charger, making it an ideal solution for both residential and commercial applications. With its ability to connect to two independent AC sources, such as shore power and generators, the Quattro ensures seamless energy management. In the event of a grid failure, it provides instantaneous backup power to keep your critical loads running without interruption.
The Quattro features innovative PowerAssist technology that prevents overloads while ensuring efficient battery charging. Its unique capability to work in parallel with up to six units allows for virtually unlimited power output, making it perfect for larger setups. Additionally, remote monitoring and control are made easy with a GX device, enabling you to manage your system from anywhere in the world using the free VRM app. Elevate your energy management experience with the Victron Energy Quattro today.
Features:
* Multifunctional inverter and charger for seamless power management: Multifunctional inverter and charger for seamless power management
* Accepts two AC inputs and automatically connects to the active source: Accepts two AC inputs and automatically connects to the active source
* True sine wave inverter ensures compatibility with sensitive electronics: True sine wave inverter ensures compatibility with sensitive electronics
* PowerAssist technology prevents overloads while optimizing battery charging: PowerAssist technology prevents overloads while optimizing battery charging
* Instantaneous backup power in case of grid failure, under 20 milliseconds: Instantaneous backup power in case of grid failure, under 20 milliseconds
* Parallel operation capability allows connection of up to six units: Parallel operation capability allows connection of up to six units
* Remote monitoring and control via GX devices and the free VRM app: Remote monitoring and control via GX devices and the free VRM app
