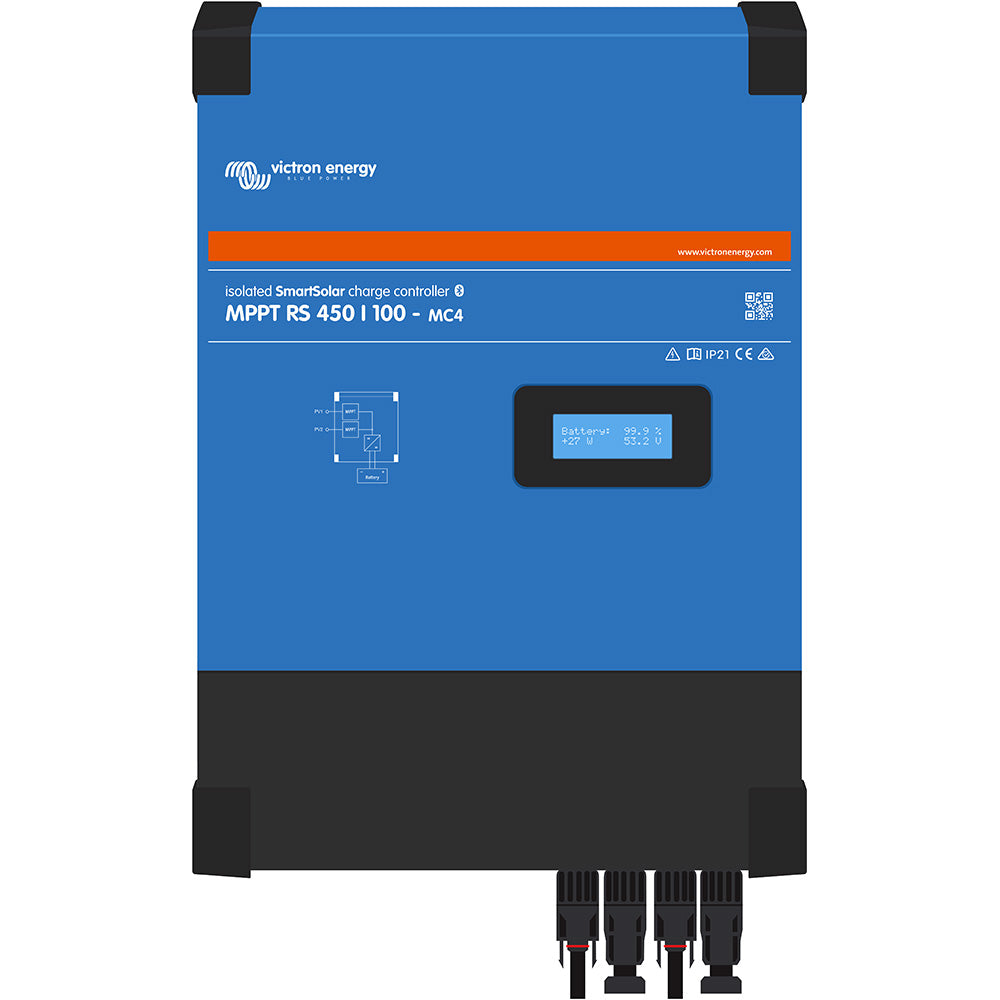

SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100
The SmartSolar MPPT RS solar charge controllers are Victrons solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.
In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.
MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.
Setup monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS VE.Can MPPT units. The additional units are simply daisy chained to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
SmartSolar Display
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both arrays individually including instantaneous and total figures and unit status including any possible error codes.
I/O Connections
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
VictronConnect
VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Charge Controller is designed for high-performance solar energy systems. Specifically crafted for large series-connected photovoltaic (PV) arrays charging 48 V DC battery banks, this charge controller is perfect for both off-grid and grid-connected setups. With a wide solar voltage input range of 65-450 VDC and robust power handling of 100A, it's built to meet the demands of modern solar projects.
This sophisticated unit features advanced Maximum Power Point Tracking (MPPT) technology, allowing it to efficiently harvest energy from your solar panels. The full programmability ensures compatibility with various battery chemistries, including lithium and lead-acid. Easily monitor and control your system via the VictronConnect app over Bluetooth, providing real-time insights into battery voltage, current, and other critical parameters. The VE.Can bus ports enable easy daisy chaining with other SmartSolar units for enhanced performance and synchronized charging.
Features:
* MPPT: Ultra Fast Maximum Power Point Tracking technology maximizes solar energy harvesting.: MPPT: Ultra Fast Maximum Power Point Tracking technology maximizes solar energy harvesting.
* Wide Solar Voltage Input: Accepts input voltages from 65 to 450 VDC for flexible solar panel configurations.: Wide Solar Voltage Input: Accepts input voltages from 65 to 450 VDC for flexible solar panel configurations.
* Programmable Settings: Fully programmable for different battery chemistries, including lithium and lead-acid.: Programmable Settings: Fully programmable for different battery chemistries, including lithium and lead-acid.
* Bluetooth Connectivity: Remote control and monitoring via the VictronConnect app for real-time data access.: Bluetooth Connectivity: Remote control and monitoring via the VictronConnect app for real-time data access.
* Daisy Chain Capability: VE.Can bus ports allow for easy connection with additional SmartSolar units.: Daisy Chain Capability: VE.Can bus ports allow for easy connection with additional SmartSolar units.
* SmartSolar Display: Front panel display shows battery voltage, charge current, and other key metrics.: SmartSolar Display: Front panel display shows battery voltage, charge current, and other key metrics.
* Remote Monitoring: Access the Victron Remote Management Portal for comprehensive monitoring anytime, anywhere.: Remote Monitoring: Access the Victron Remote Management Portal for comprehensive monitoring anytime, anywhere.
