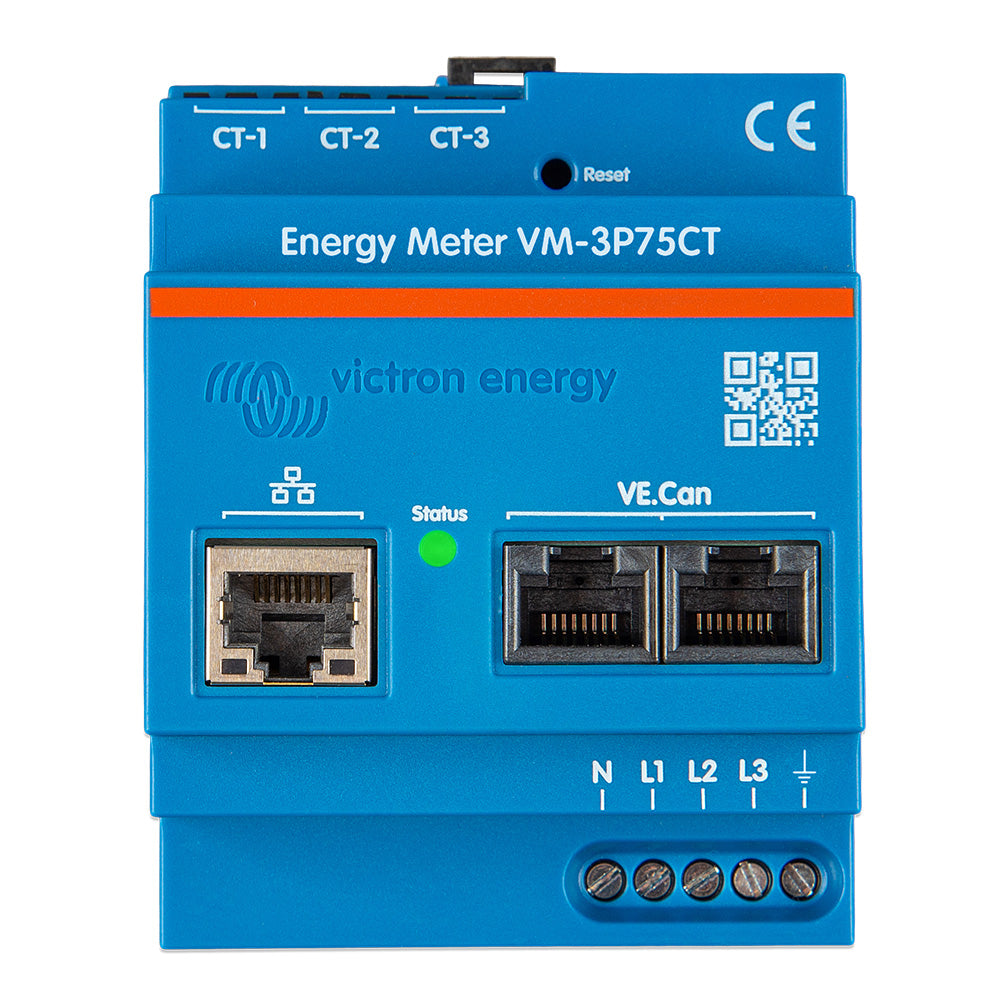

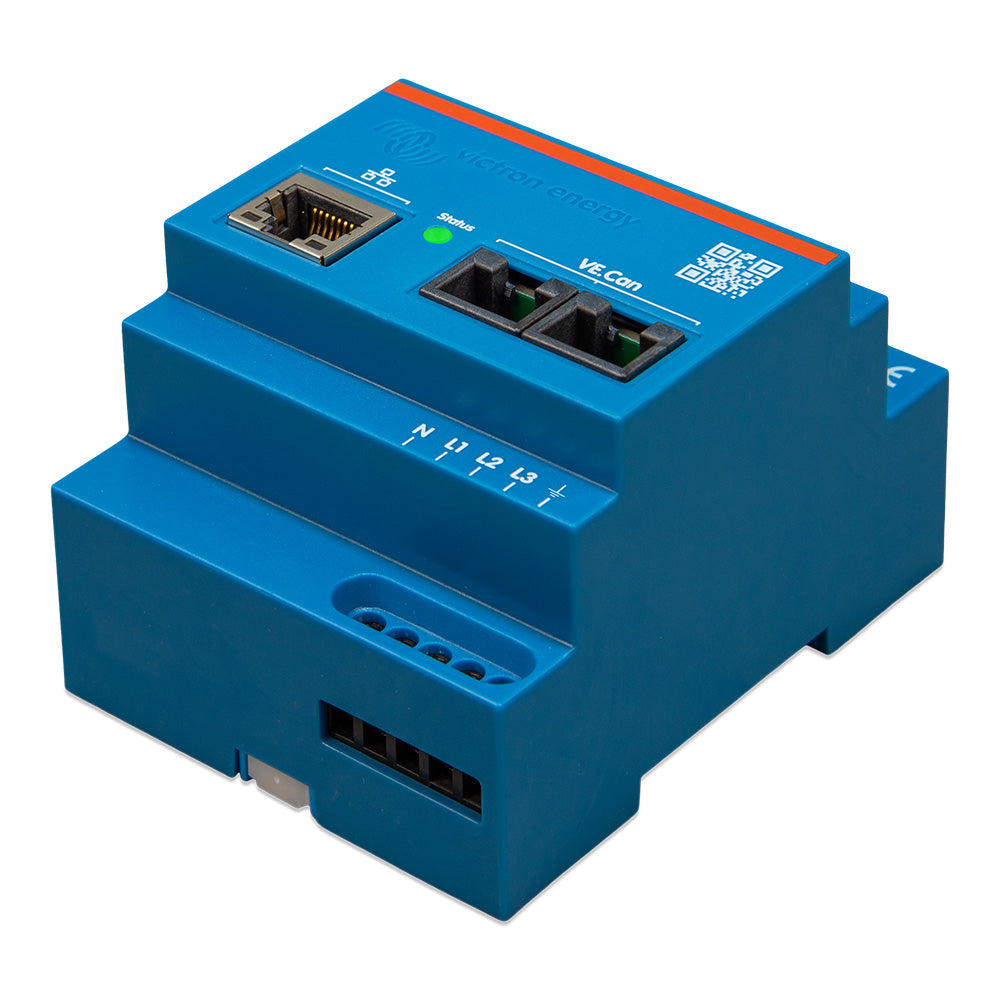

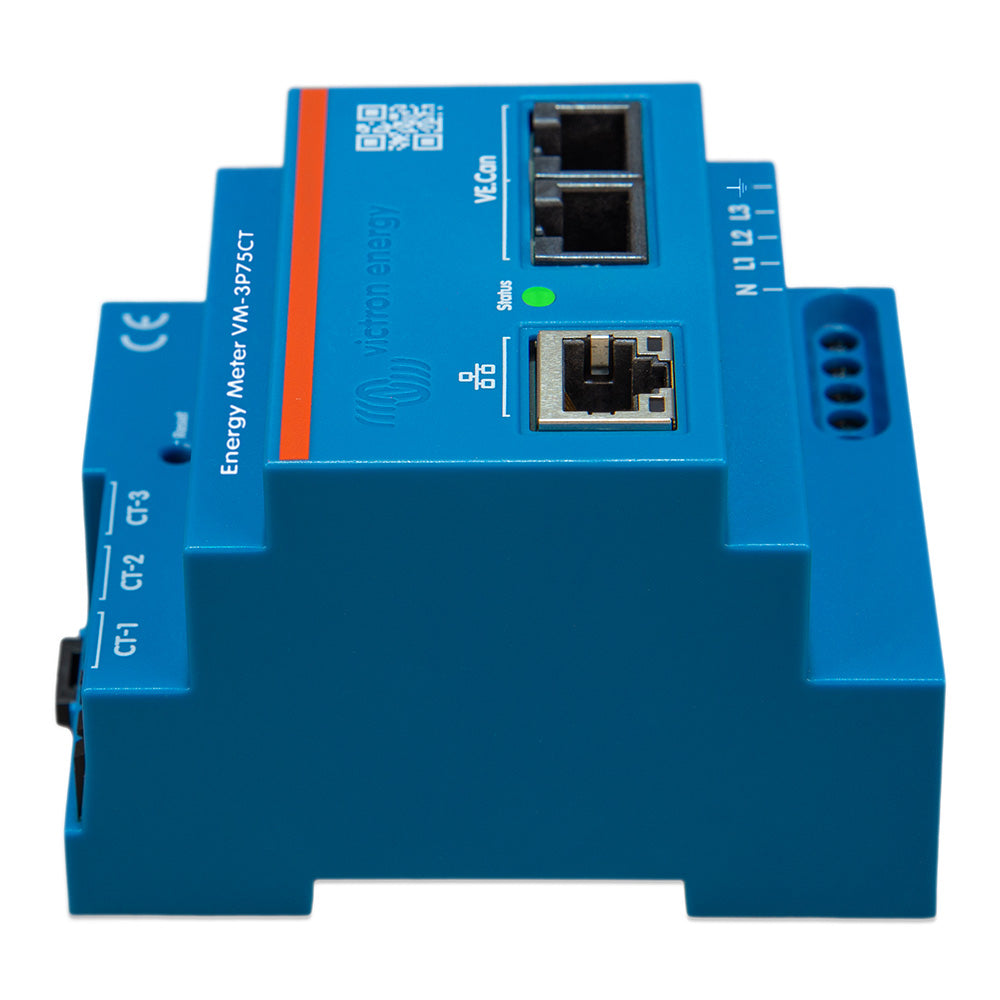

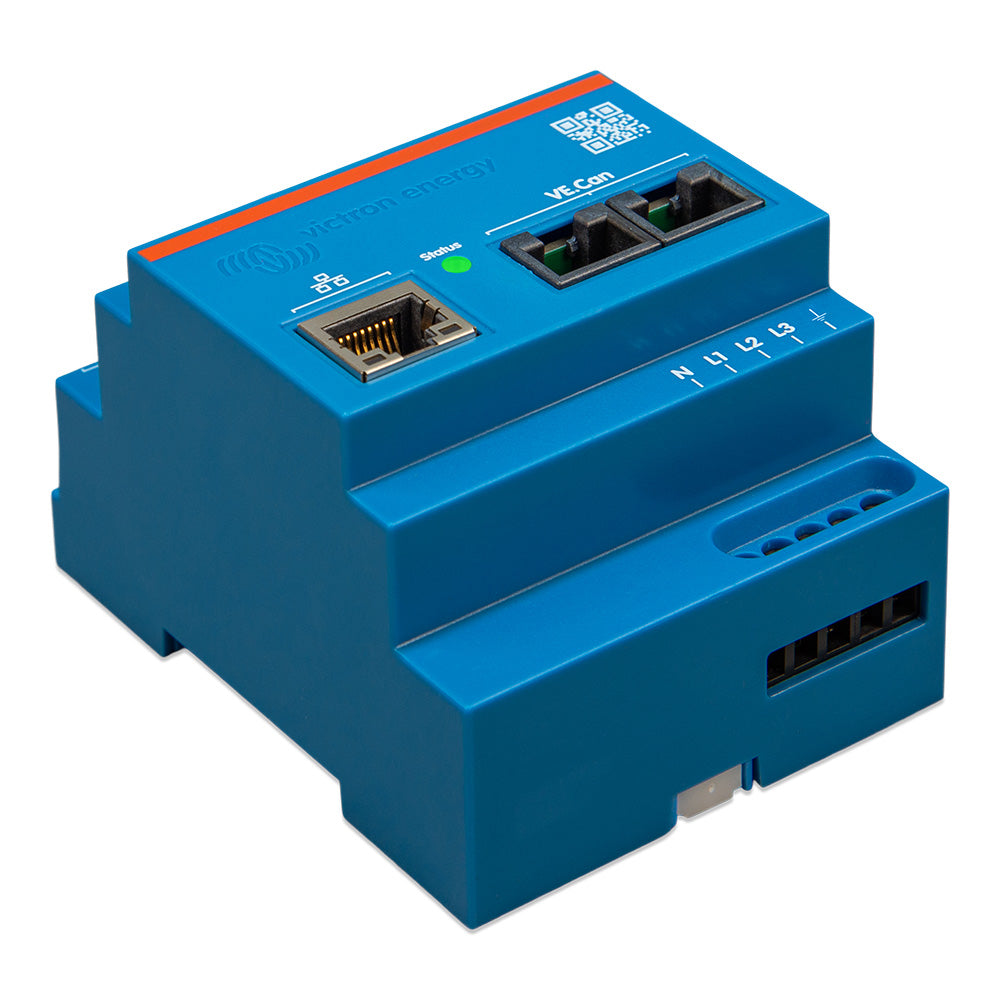

The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phases power values and broadcasts this over VE.Can or Ethernet with a high rate. It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.
The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.
Specifications:
Voltage connection: Direct
Input voltage range L-N: 85 to 265VAC
Input voltage range L-L;150 to 460VAC
Frequency: 50/60Hz
Current connection: Via current transformers (included - wire length 640mm (25.2in)
Rated current: 75A
VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)
Ethernet communication port: One RJ45 connector, Modbus UDP
Refresh rate: 100ms
Type: Self-power supply via L1-N
Switch or circuit breaker: Required as means of a disconnecting device - not included
External fuse [1]: Required in the neutral conductor - 500mA, not included
Consumption: 1.45W / 3.1VA
Frequency: 50/60Hz
Material Color: Polycarbonate, blue (RAL5012)
Voltage connection: Screw terminals 0.25 - 1.5mm2 (24 - 16AWG)
Current transformer connection: Pluggable screw terminals (included)
Protection category: IP20
Weight: 370g (including packaging)
Dimensions: 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)
Indoor/outdoor usage: Indoor only
Operating temperature: From -10 to +55 C
Storage temperature: From -20 to +70 C
Relative humidity: < 90% non-condensing
Altitude: 2000m (6562ft)
Mains supply voltage fluctuations: 0.1Vin
Overvoltage category: Cat. III
Pollution degree: 2
Whats In The Box
Victron VM-3P75CT with 3 input terminal blocks
3x Split-core current transformer, wired ready for connection
Wire length: 640mm (25.3)
VE.Can terminators (2-pieces)
Please contact your dealer for any returns, repairs or support issues related to this product. The Victron Energy VM-3P75CT Energy Meter is an essential tool for accurately measuring power and energy in both single-phase and three-phase applications. This advanced energy meter calculates power values for each phase and shares them over VE.Can or Ethernet with impressive speed. Featuring built-in Ethernet and VE.Can ports, it easily connects to GX devices. The included split-core current transformers allow for quick installation, making it ideal for retrofitting into existing systems without any wiring modifications.
Designed to function out of the box, the Victron VM-3P75CT is perfect for grid systems using MultiPlus and Quattro devices. While it may require a firmware update, configuration is straightforward via VictronConnect, primarily for adjusting roles or manual IP settings. Monitor your energy data seamlessly on GX devices like the Cerbo GX or Ekrano GX, as well as through VictronConnect and the VRM Portal, providing you with real-time insights into your energy consumption.
Features: * Measures power and energy for single- and three-phase applications: Measures power and energy for single- and three-phase applications
* Calculates phase power values and broadcasts data over VE.Can or Ethernet: Calculates phase power values and broadcasts data over VE.Can or Ethernet
* Built-in Ethernet and VE.Can ports for easy connectivity: Built-in Ethernet and VE.Can ports for easy connectivity
* Split-core current transformers enable simple installation: Split-core current transformers enable simple installation
* Compatible with MultiPlus and Quattro systems for grid monitoring: Compatible with MultiPlus and Quattro systems for grid monitoring
* Real-time data display on GX devices and VictronConnect app: Real-time data display on GX devices and VictronConnect app
